【Brief description】

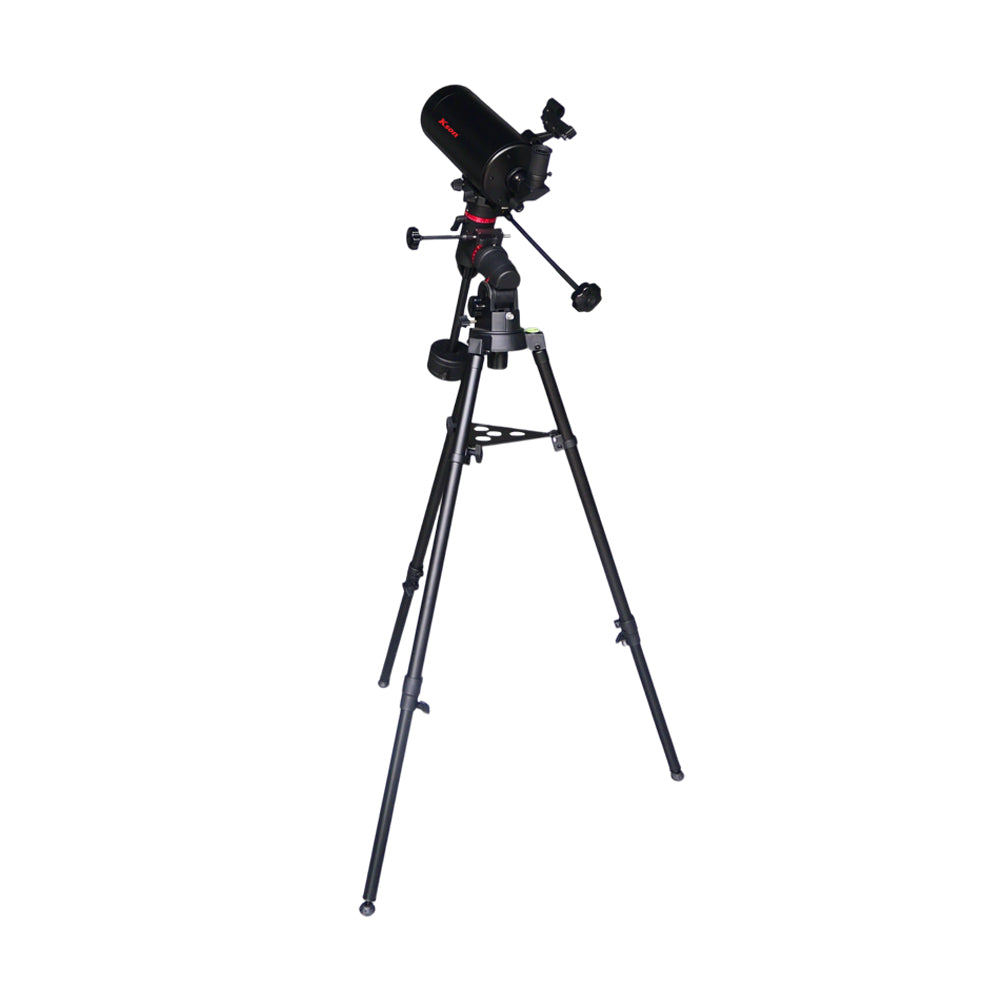

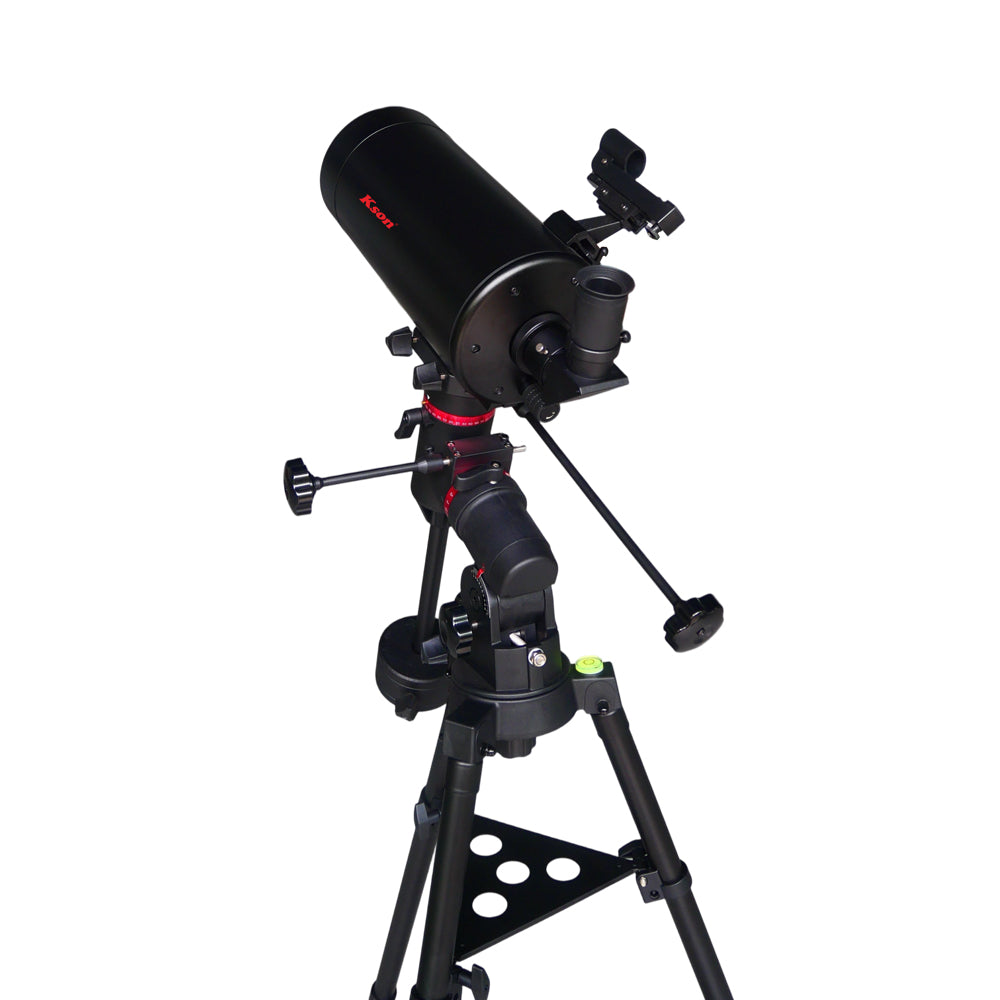

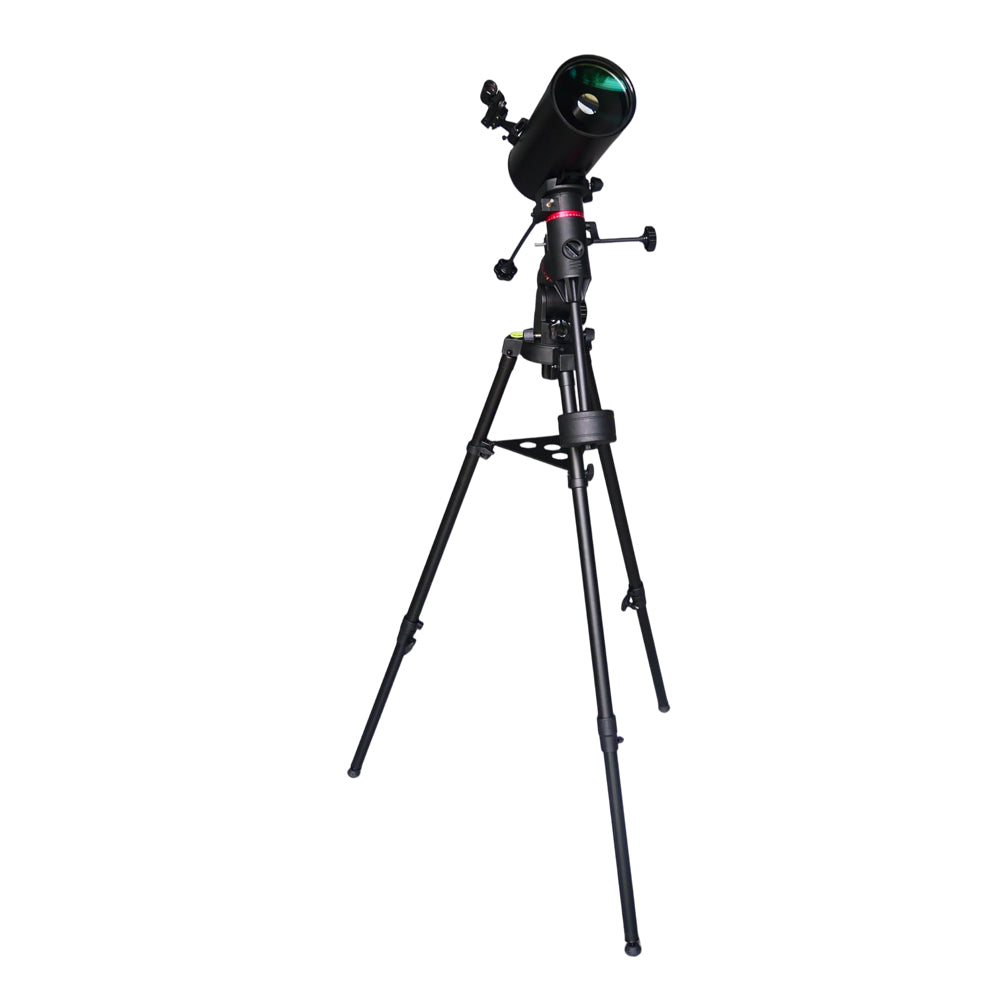

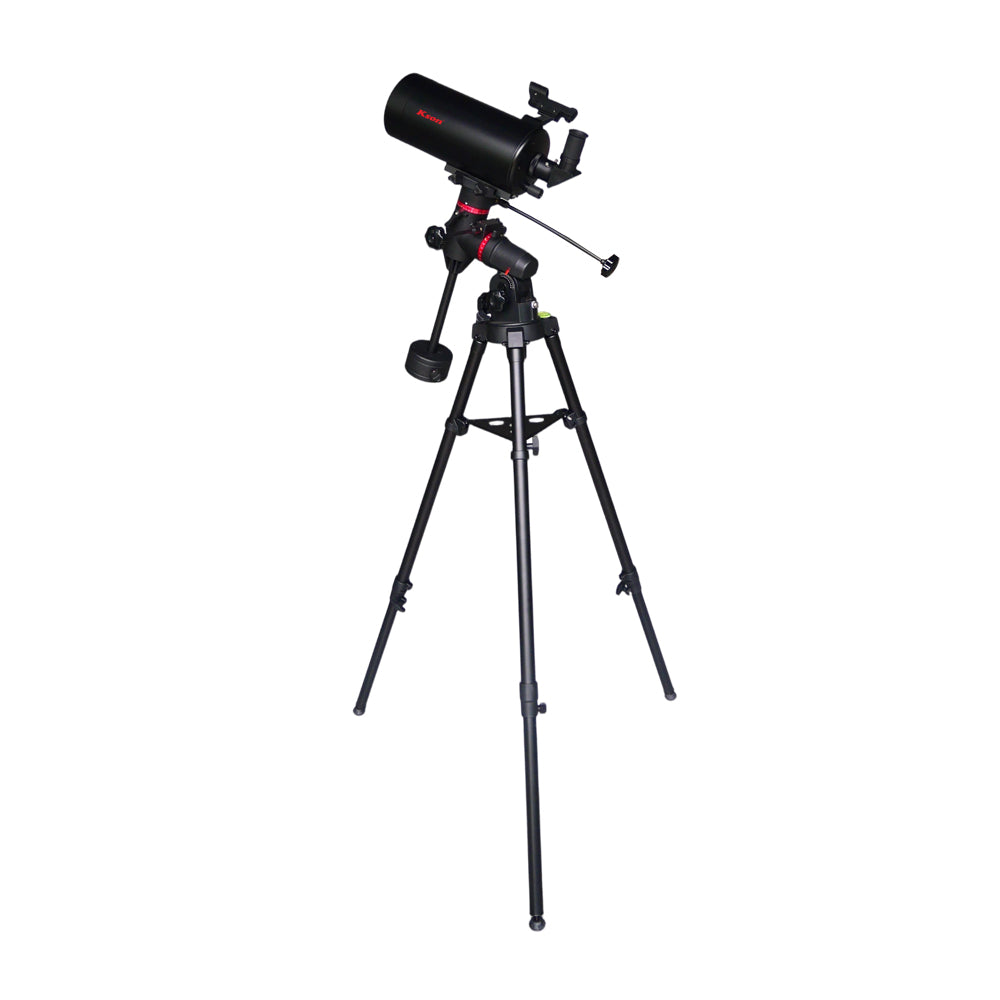

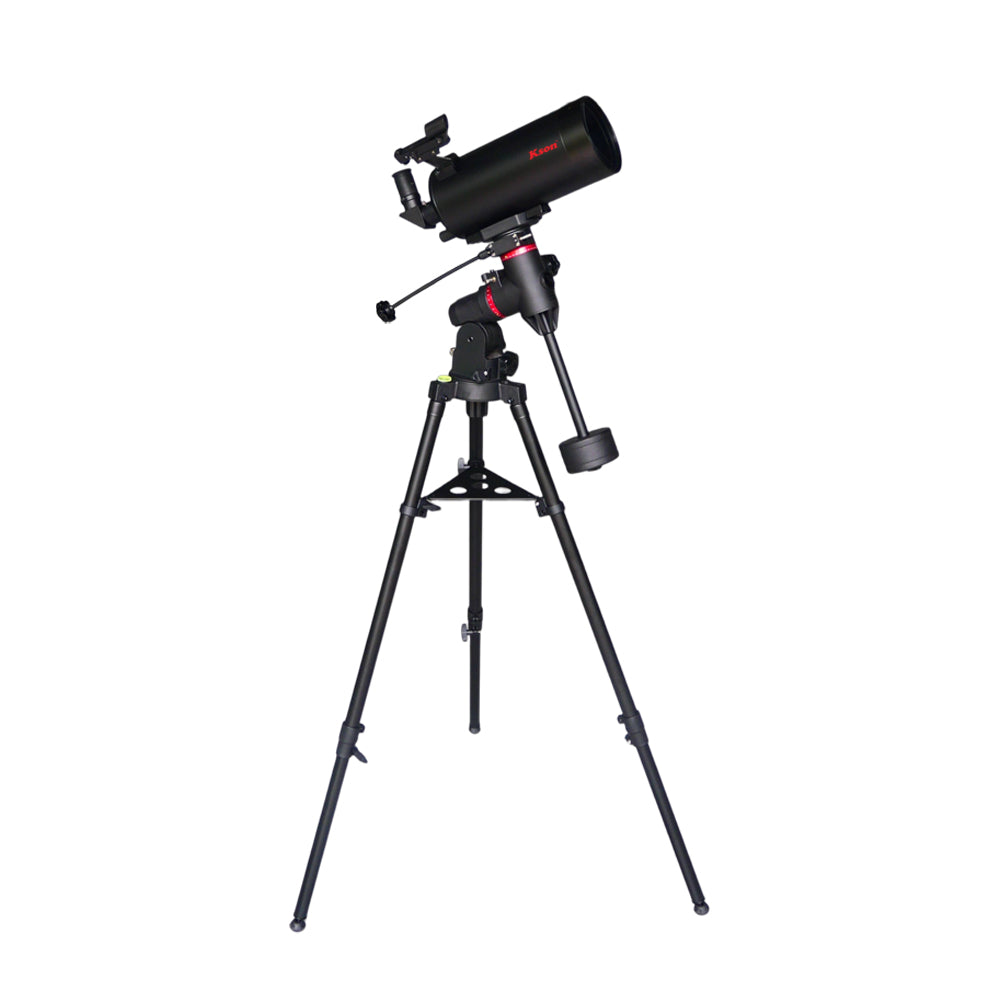

The KSON MAK127EQ4 Astro-Terrestrial Refractor Telescope is mounted on a German Equatorial mount.The mount features solid metal construction, setting circles and locking knobs in declination and right ascension,counter balance shaft and weights, latitude adjuster, and slow motion controls with detachable flex cables in both axis. A motor drive can also be attached for added tracking capability .

【Product Description】

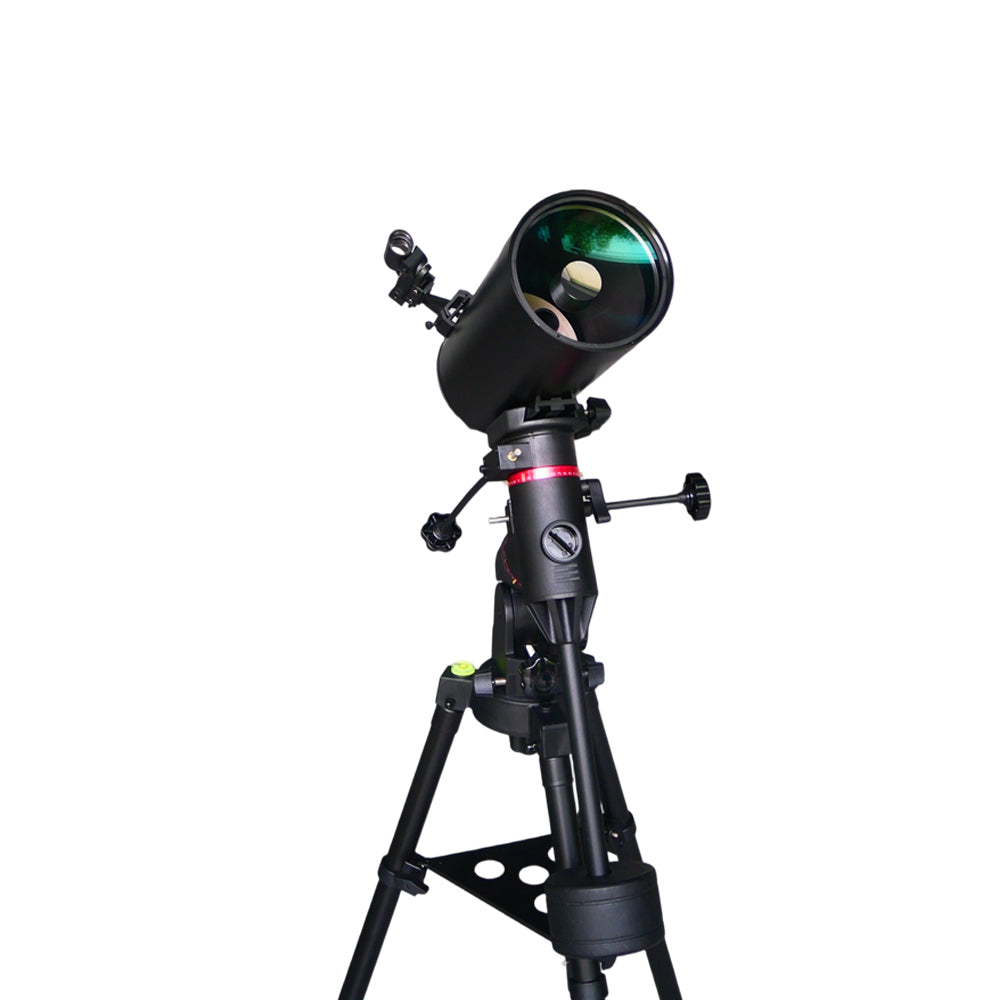

The KSON MAK127EQ4 optical tube assembly features a 1500mm focal length with 127mm aperture mirror-lens scheme. The lens is an 135mm corrected meniscus with broadband multi-coating on both sides, and in the center of the concave surface there is reflecting coating area, which is the second reflecting surface of the system. The primary mirror is a 127mm coated with higher reflectivity Aluminum and SiO2 protection. The tube itself is aluminum, painted flat black internally, and fully baffled for excellent visual and CCD imaging. It has a resolving power of 0.91 arc seconds.

The optical tube assembly is diffraction limited at λ4 (1/4 wave in Sodium light). The diagonal consists of a 90° mirror, providing right-side-up images for terrestrial viewing. The finderscope is KSON’s electronic Red Dot Finder which helps by getting the observer behind the telescope without losing the surrounding field of view when targeting objects.

【Product specifications】
