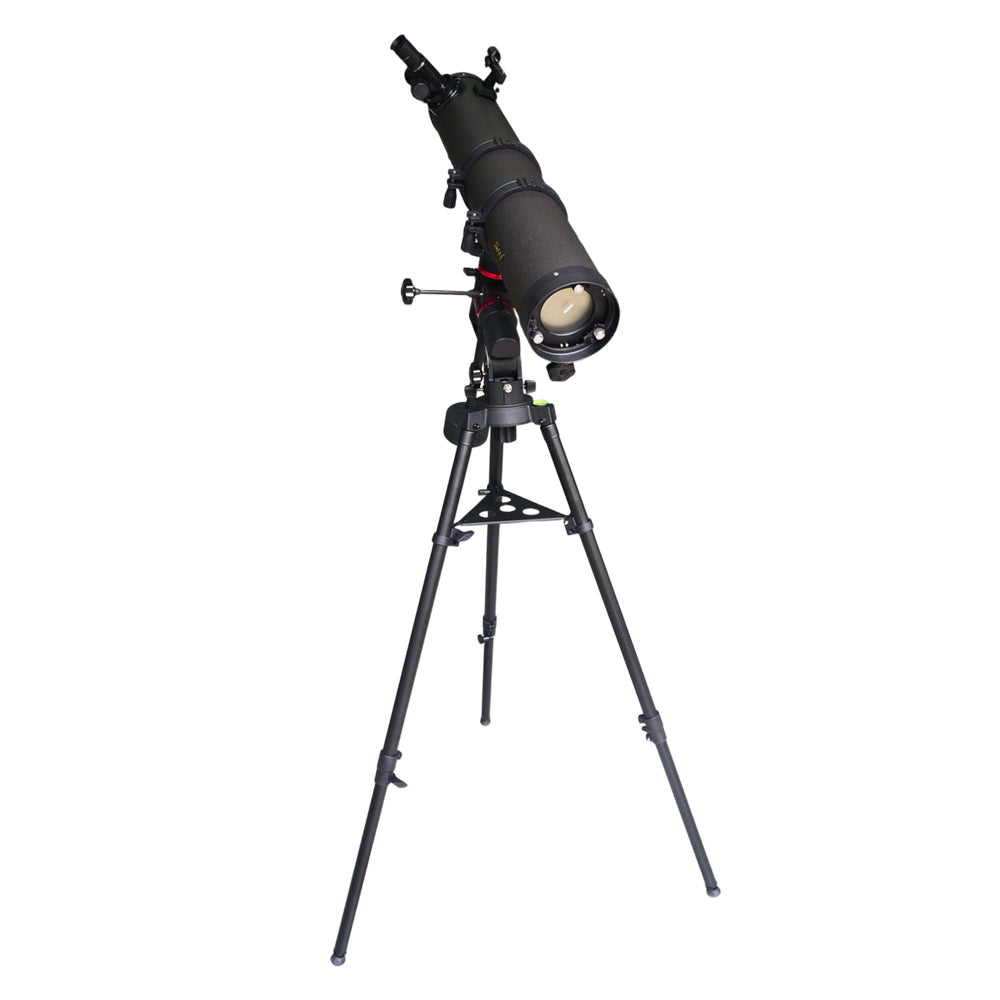

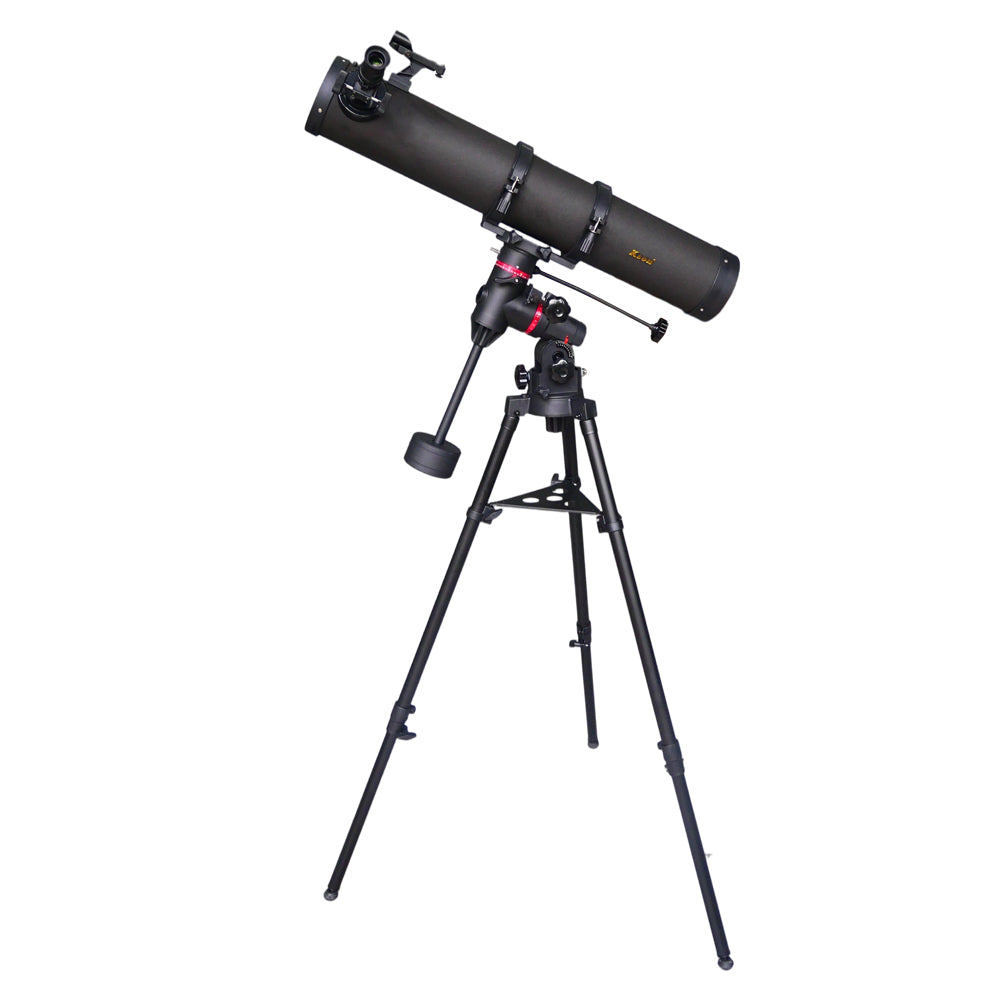

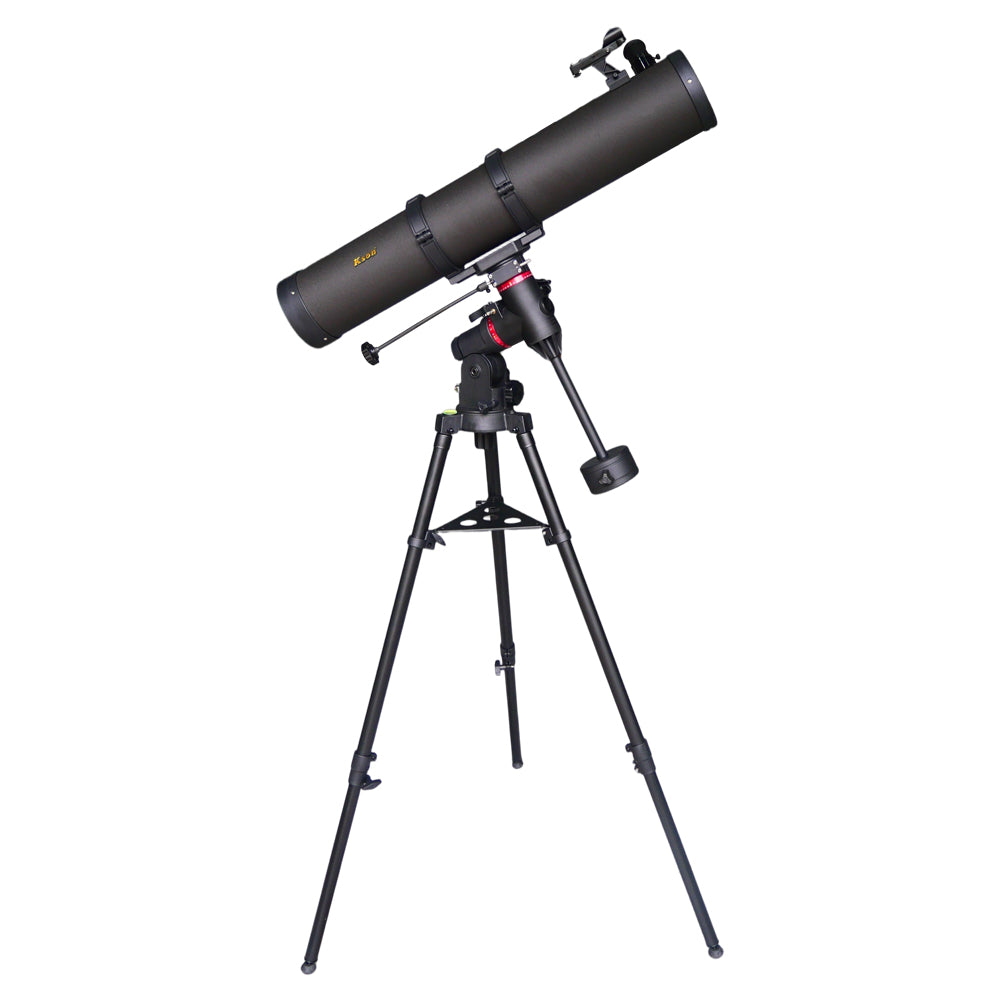

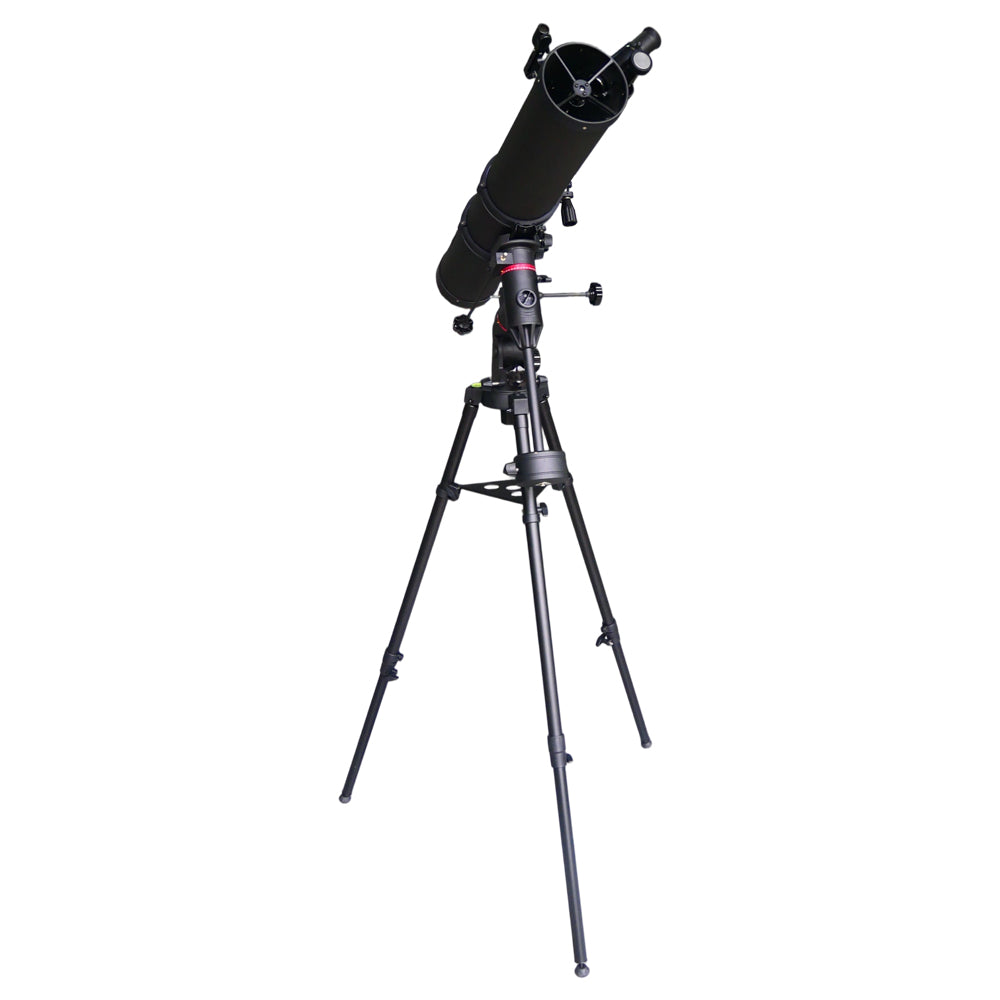

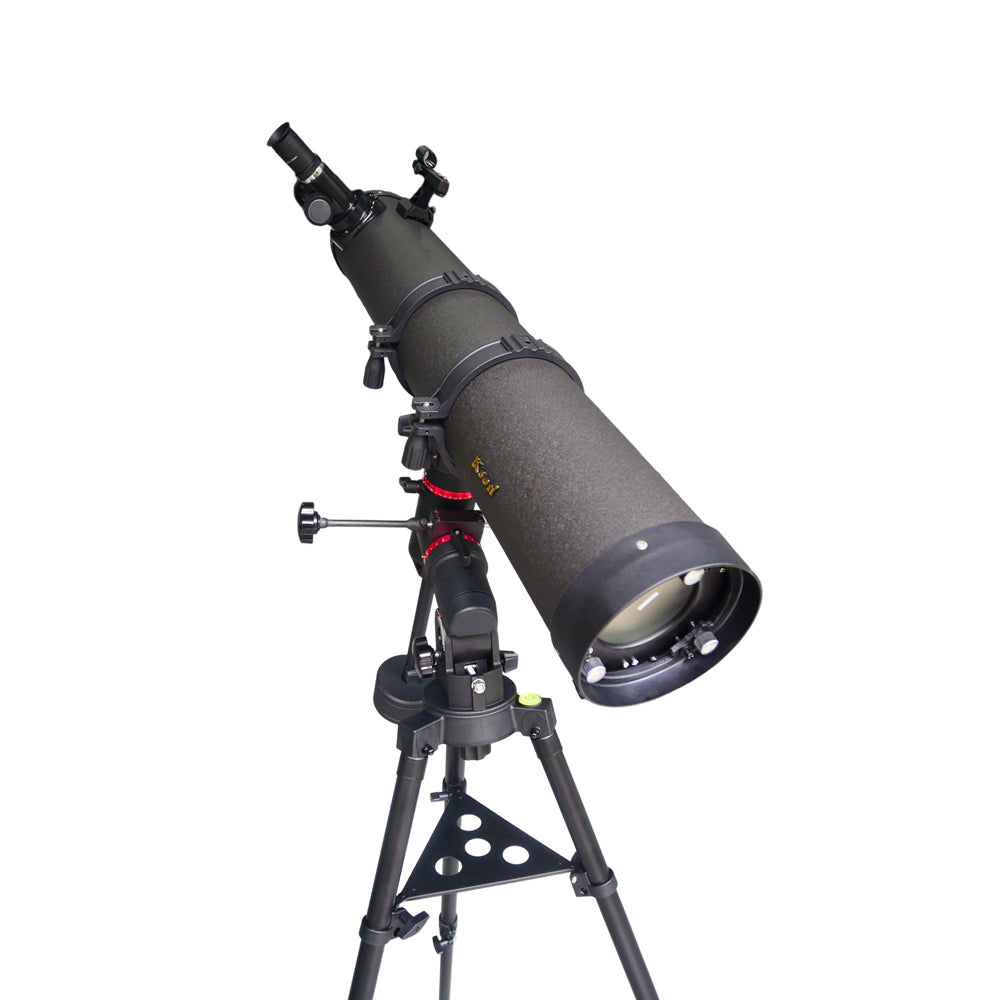

KSON KTE900114KM-EQ4 Reflector Telescope
The main mirror of the telescope is completely aluminized, with a reflectivity of up to 90%. It is equipped with a silicon monoxide quartz coat, which can not only protect the coating,but also effectively resist the interference of the external environment. The high resolution of this mirror is 1.02 arc seconds and the limit magnitude is 12.4, which provides an excellent observation experience for observers.
In addition, the secondary mirror block of KTE900114KM-EQ4 is about 25% linear(about 6% of the total area), while diffraction of the light tube assembly is limited by λ4(the ¼ wave in sodium light), which ensures the clarity and accuracy of the observation.
In term of shooting, the telescope is equipped with an electronic red dot viewfinder, which helps observers maintain a surrounding field of view when aiming at objects,improving the convenience of observation. At the same time, the telescope is also equipped with two eyepieces, namely the 1.25-inch and 25-mm Keller eyepiece and the 1.25-inch 10-mm Plossl eyepiece, both of which are full-color correction designs, providing a broad field of view.
The telescope is installed on the EQ4 German equatorial bracket, which is made of solid metal and engineering plastic structure, which is strong and durable. The bracket is also equipped with slow motion control, balance shaft and other adjustment devices, which is convenient for users to make various adjustments. In addition,the telescope can also connect the motor driver to increase the tracking function,and connect the polar sight for precise alignment. The whole system is installed on a sturdy and a adjustable tripod, providing a stable observation platdform.
In a word, the KTE900114KM-EQ4 Reflector Telescope is a Powerful and excellent astronomical telescope, suitable for professional and amateur astronomical observers.
Product Specified
|
Model |
KTE900114KM-EQ4 |
|
Optical Design |
Reflector |
|
Aperture |
114mm |
|
Focal Length |
900mm |
|
Focal Ratio |
f/7.89 |
|
Coating |
Higher reflectivity Aluminum coating |
|
Resolution(Dawes Limit) |
1.02 |
|
Limiting Magnitude |
12.4 |
|
Lightgathering Power(vs naked eye） |
265x |
|
Eyepiece |
1.25’’ KF25, PF10mm |
|
Barlow |
N/A |
|
Mount |
KM-EQ4 Equatorial Mount,with flexible cable,2kgs counterweight with 100mm diameter Cradle made from nylon |
|
Tripod |
Reinforced KT4 pre-assembled Ultra sturdy all metal tripod, Full length |
|
Finder scope |
Red dot Finder |
|
Mirror Diagonal/Erecting Prism |
x |
|
Focuser |
1.25’’ with Helical Rack & Pinion |
|
Net Weight |
14kg |
|
Gross Weight |
15kg |
|
Dimensions |
117.5 x 47 x 28cm |
|
Package |
Remailer Carton |
|
1x40’Container QTY |
400pcs. |
Product Contains
- 1.25’’ KF25mm Eyepiece
- 1.25’’ Plossl 10mm Eyepiece
- Red Dot Finder
- Azimuth micro-adjustment
- KM-EQ4 + KT4 Tripod
- Package Size：118 x 47 x 27 cm
- Gross Weight：17kg
- Optional：Polarscope, Solar filter
