【Brief description】

German Equatorial mount, counterbalance and tripod supplied as a complete kit for users already have telescope scopes or supplied with telescope and accessories as complete telescope.

【Product Description】

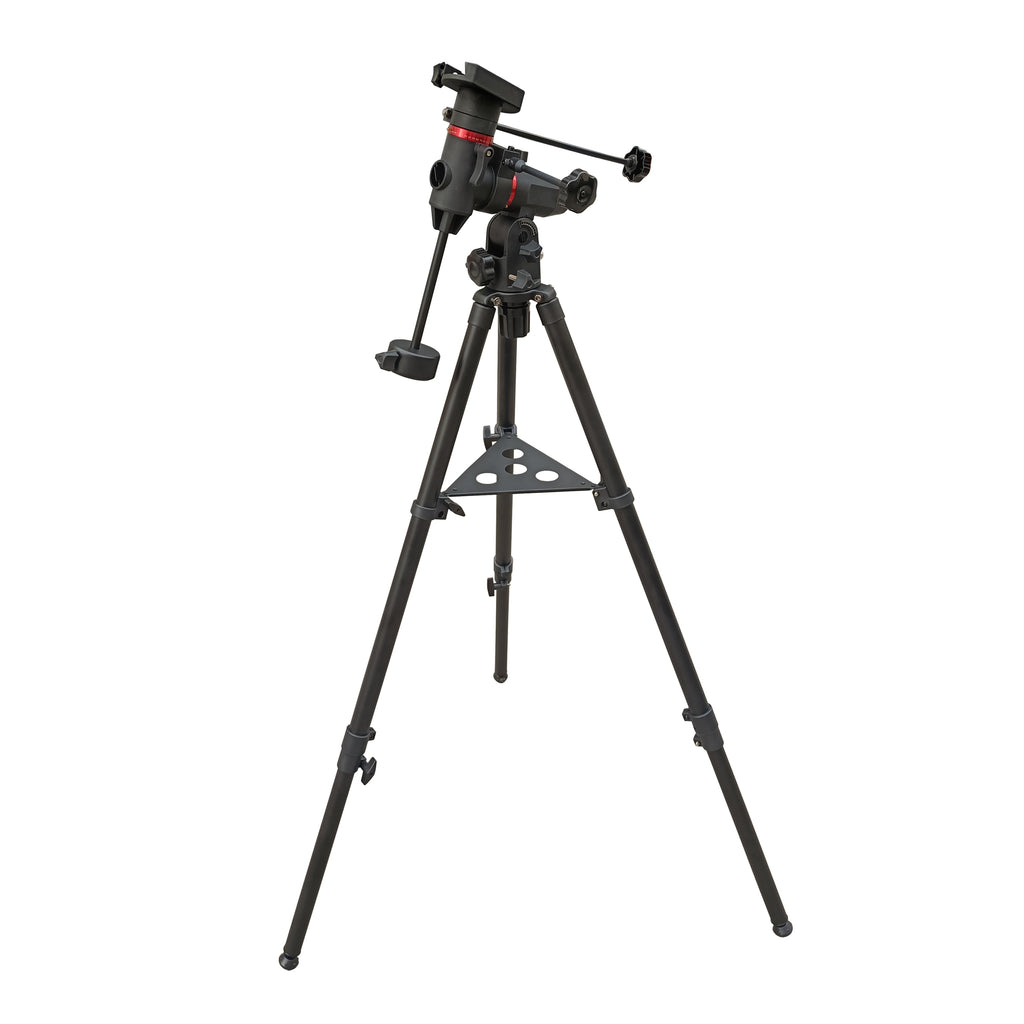

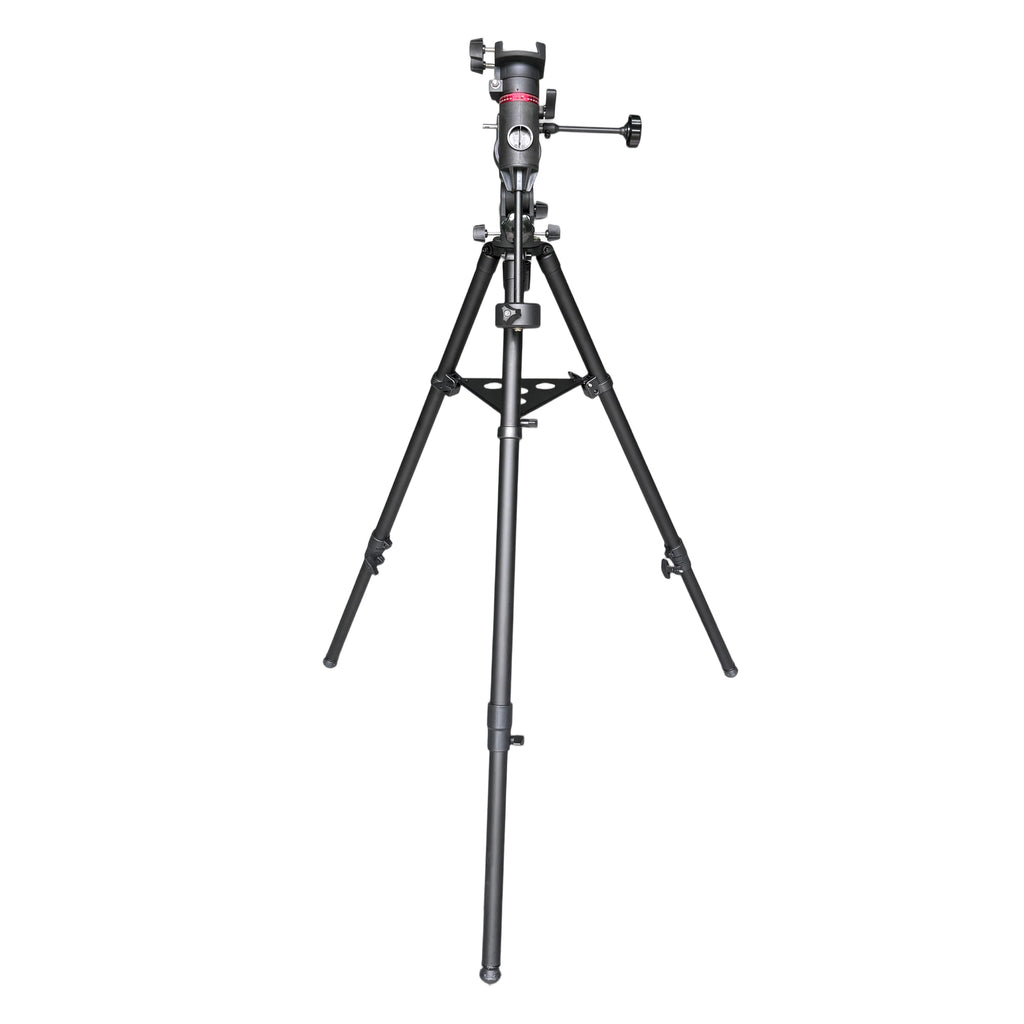

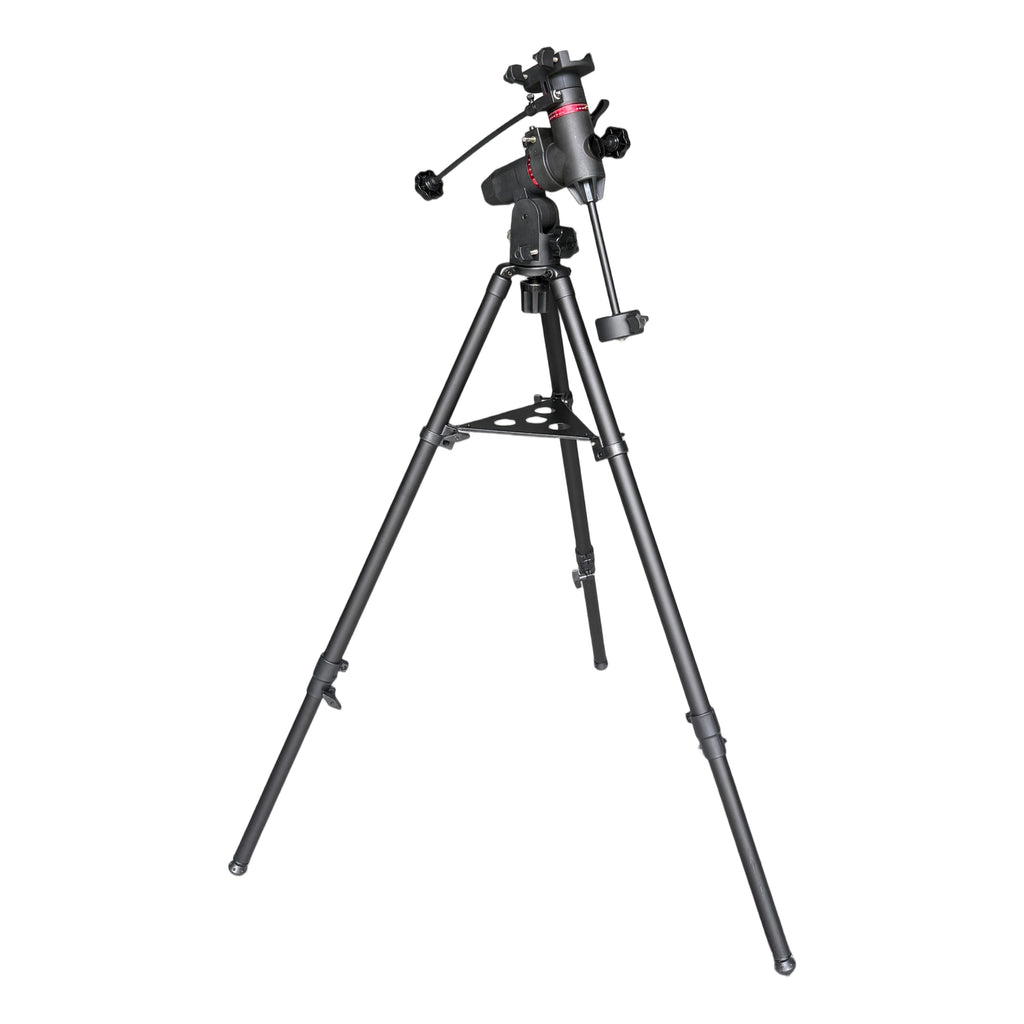

The KSON KM-EQ2 Mount, is designed and manufactured for 4kgs payload with smooth movement and sturdy performance. The 63mm diameter RA worm and worm gear are CNC-machined with very high quality to ensure the smooth tracking. Vixen style dovetail adaptor is a standard part and is suitable for scope with Vixen dovetail plate. With 25x2.5mm diameter steel tube RA shaft, it is stable enough for 4kgs OTA.

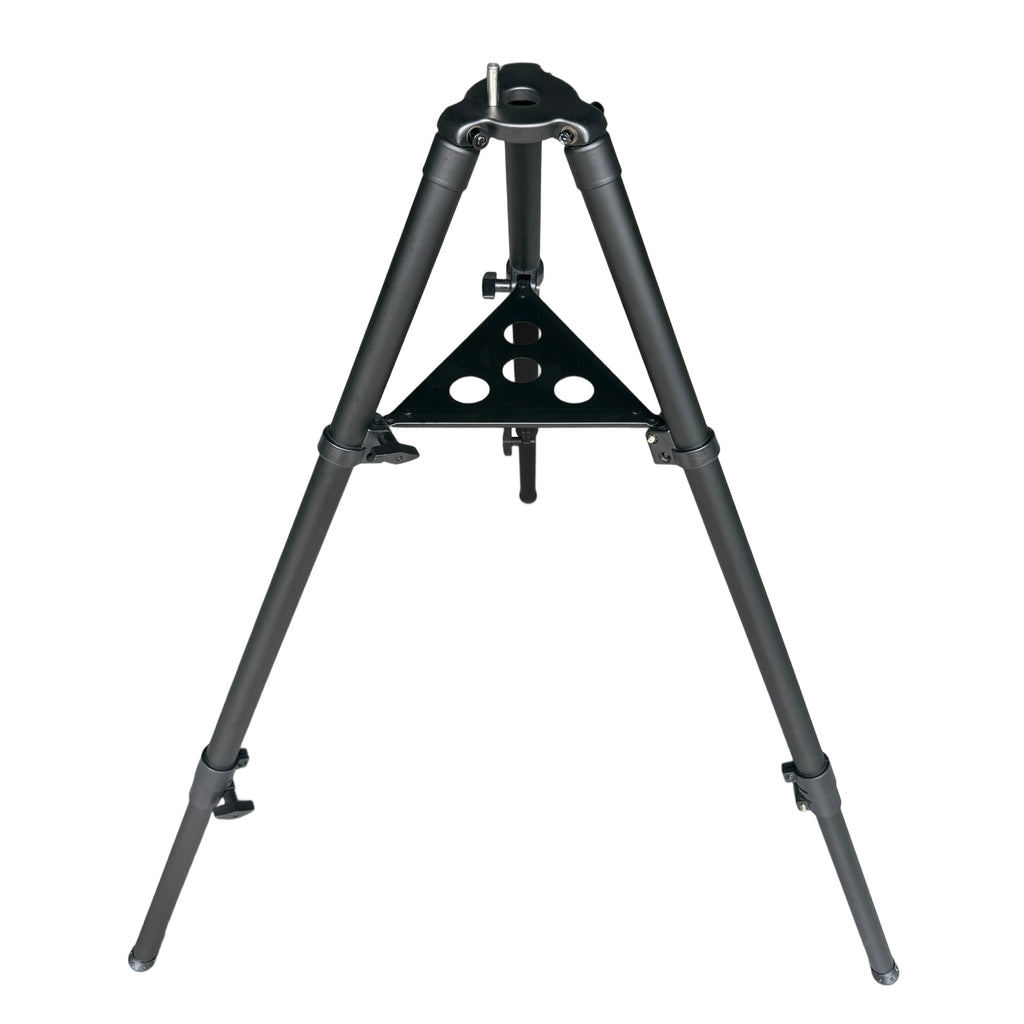

Tripod uses 28mm/25mm steel tubes, adjustable height from 70 to 120cm, with the triangle-shaped tray accessory forced with three connectors on the tripod top tubes makes the tripods very stable.

The EQ mount is only 1.5kgs, with 1.1kgs of counterbalance and 210mm long 12mm diameter shaft and KSON KT4 tripod it is less than 5kgs.

Highlighted Features of the KSON KM-EQ2 Mount：

German Equatorial mount, counterbalance and tripod supplied as a complete kit for users already have telescope scopes or supplied with telescope and accessories as complete telescope.

63mm diameter RA worm and worm gear are CNC-machined with very high quality

25x2.5mm diameter steel tube RA shaft Includes RA and DEC slow-motion controls and setting circles.

Azimuth micro-adjustments for easy and fast North Alignment Vixen style dovetail adaptor is a standard part and is suitable for scope with Vixen dovetail plate.

Tripod has an adjustable height from 70 to 120cm, 28/25mm tubular steel leg tripod.

Triangle-shaped tray accessory forced with three connectors on the tripod top tubes

Counterweight shaft: 20mm diameter 350mm long Polarscope: 19mm diameter, optional. With or without illuminator eyepiece. Motor Drive: Optional One counterweight: 1.1kgs
